3 Phase DB Pics

[steviez]

Hi,

Anyone have any pictures of their 3 phase DB installs?

Thanks



[Taylortwocities]

Why? Are you installing one?



[steviez]

Why? Are you installing one?

No, I am training to be an electrician and want to get an idea of what the installs looked like



[Taylortwocities]

Theres a 3 phase DB shown on here. About the third picture
http://www.checkatrade.com/JWElectricalServices/Gallery.aspx



[ban-all-sheds]

Here's a 2-phase one.



[martinxxxxxx]

Theres a 3 phase DB shown on here. About the third picture
http://www.checkatrade.com/JWElectricalServices/Gallery.aspx[/QUOTE]

Do you know John Wellman personally?



[Taylortwocities]

Nope, just googled and found the pic.
Is JW someone to admire then?



[40 watt spark]

This is the only one I have to hand.

Untitled

• 40 watt spark
• 31 Aug 2008
• 2

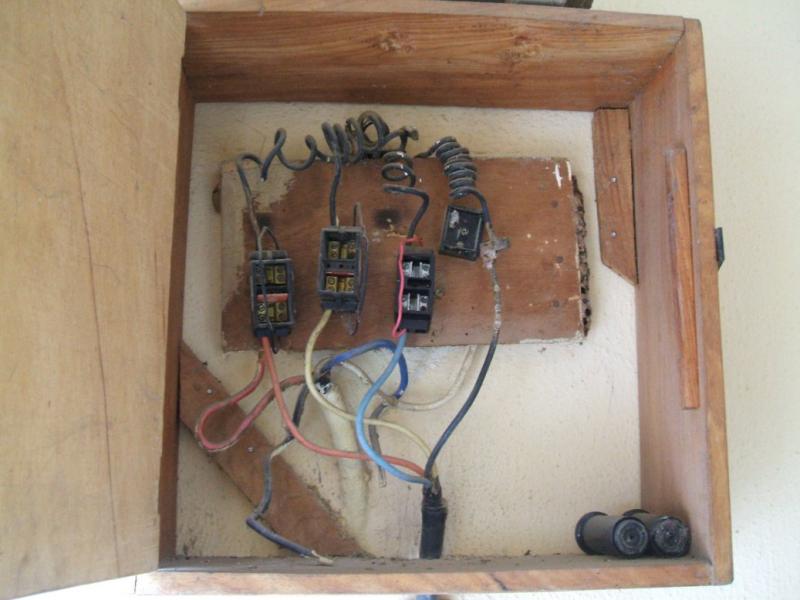

Hopefully you won't come across any like these, I can't claim credit for them, they are from my bro-in-law

Untitled

• 40 watt spark
• 24 Nov 2009
• 2

Can't claim the credit for this one, sent to me by the bro-in-law working for the foreign office...

Love the 2.5 being used as replacement fuses, UK foreign office building in Nigeria. It was live when the picture was taken.....

baghram airbase

• 40 watt spark
• 7 Aug 2011
• 1

Baghram airbase Iraq, the door does lock but thinking it'll need a big grommet at the bottom



[Paul_C]

Here's a 2-phase one.

Or more commonly used for 3-wire single-phase.



[oasistechnical]

and amercan!

compleat with grounded and grounding connections!!!

or as we know the neutral and earth!

Oasis



[333rocky333]

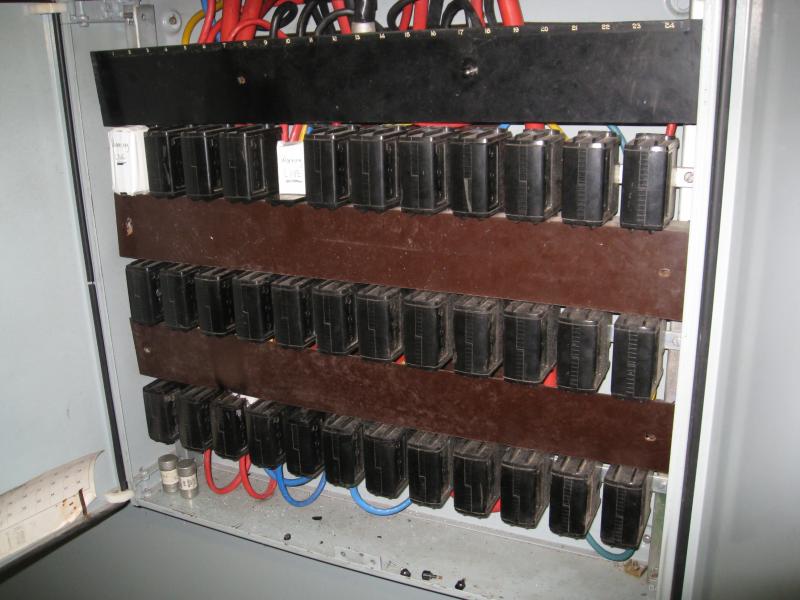

Heres one ive worked on. underneath covent garden, sub mains to the shops.

Untitled

• 333rocky333
• 29 Nov 2008
• 1

One at soho not in use now

Untitled

• 333rocky333
• 29 Jul 2008
• 1

Untitled

• 333rocky333
• 21 Jul 2008
• 2



[ColJack]

it's amazing the state of some of these old DB's in various basements and factories..

there should be mandatory updating every 20 years or so..



[martinxxxxxx]

Nope, just googled and found the pic.
Is JW someone to admire then?

No I thought you might be he; as the OP had ask for pics of peoples own installs



[steviez]

Thanks for your pics so far guys. If anyone has any commercial or industrial ones please do show. I want to see how you guys arrange your cables and trunk them out of the DB



[JohnW2]

If anyone has any commercial or industrial ones please do show.

I would have thought that what all the pics that have been posted are. Although some people (like me) have 3-phase supplies to a residential property, the phases are then almost invariably split and then dealt with as single-phase - I find it hard to believe that (m)any even half-ordinary 'dwellings' will have 3-phase DBs.

Kind Regards, John.
