Help to connect Smart Thermostat, wiring issues

tonee · 10 Mar 2023

Hi
I am trying to wire in a new smart thermostat WT100 Series from a Drayton RTS9

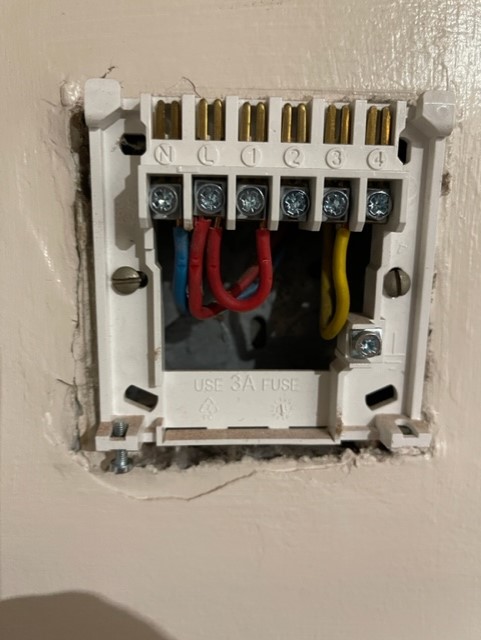

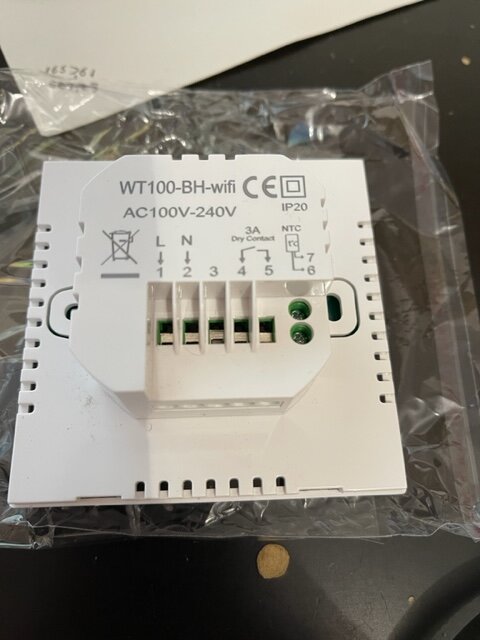

Any pointers from the below pictures as to which wire goes where would be helpful.
I am being thrown by the connected Live to Common wire.

EFLImpudence · 10 Mar 2023

tonee · 10 Mar 2023

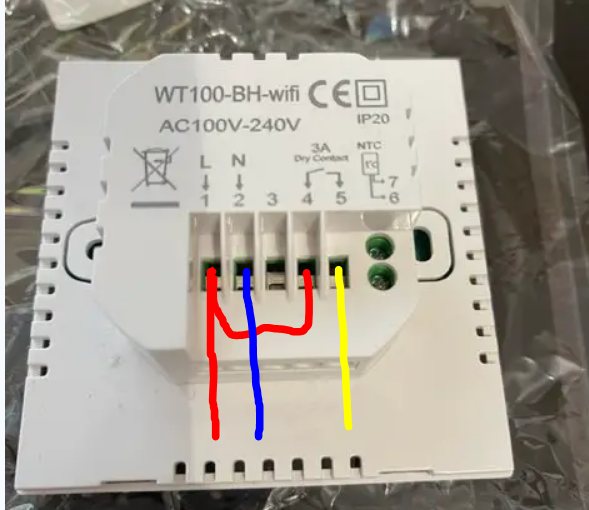

I had a feeling this was the case but wanted some advice before risking blowing up my controller

Regards
Tony
