How to cut worktop boltholes with this jig

[BloodAndBandages]

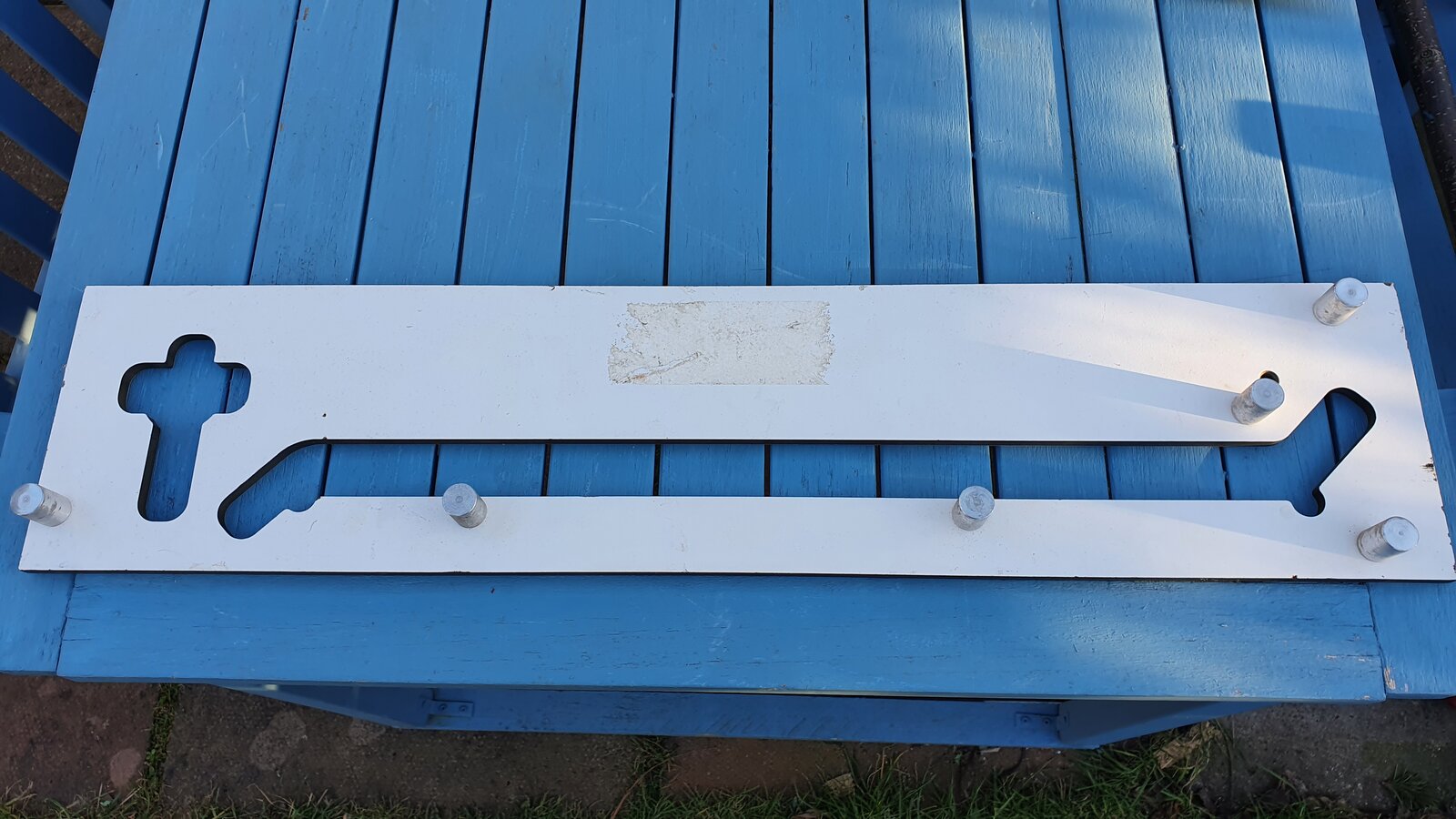

I've acquired this jig and router. I'm only interested in how to cut the recesses under the worktop to insert bolts to join the corners - can they be done with that cross shape on the left?

Also, I think my router is missing a guide bush. It's a Silverline 675059. Can I get a guide bush for this beast?



[Tigercubrider]

Isn't the smaller profile for the bolts?

What size is the router?



[BloodAndBandages]

I believe so. I'm just not sure how it should be used. I guess as long as the recesses are in line and the same depth, it's not rocket science.

The lack of guide bush on the router is a problem though, I think.

It's a half inch router.



[Deleted member 174758]

Router generally needs a 30mm guide buses and a 1/2in (12.7mm) diameter x 2in (50.8mm) straight, 2-flute TCT cutter to rout the recesses. Suggested power is 1800 watts plus with a 1/2in collet - 1/4in routers struggle with this task as can lower power 1/2in models). BTW your router has no guide bush. Also wrong type of bit.

To use, do the make and female worktop cuts. The mark the three joiner positions on the main worktop on the underside (pencil lines, use a try or combi square, male side of joint first). Transfer the markings to the mating face of the other worktop (I measure from the back edge, but I use a "rod" or straight piece of timber scrap to transfer the markings from the male to the female sides)

Once marked pop the pins in the jig and centre the cut out template on the pencil line. Rout-out, working clockwise, depth set to be slightly greater than the thickness of your "dog bone" joiners. May take 2 or 3 passes at increasing depths depending on the power of the router

See Trend Machinery web site (Knowledge Base) for descriptions and videos



[Old Salt]

Does the jig have a makers name, you can get instructions off the net. Basically the pins go against the edges of the work top but you will have to work out your alignment so they coincide for the join. If the router has a name you should also be able to get hold of a guide bush and new cutters.

Plenty of you tube videos on how its done.



[BloodAndBandages]

The router is 1850W and I have a set of new bits for cutting worktops.

Cutting the bolt recesses looks straightforward enough from what I've seen on YouTube.

The guy I bought this off reckoned I wouldn't need a guide bush, but I think I do!

The worktop has a straight edge, so I don't need to do a mason's mitre/dog leg join.



[BloodAndBandages]

Does the jig have a makers name, you can get instructions off the net. Basically the pins go against the edges of the work top but you will have to work out your alignment so they coincide for the join. If the router has a name you should also be able to get hold of a guide bush and new cutters.

Plenty of you tube videos on how its done.

Unfortunately no maker's name on the jig, but I think it's easy enough. I'm hoping I can find a suitable guide bush for the router (I do have the model no for) - I did have a look online with no luck.



[Old Salt]

I would also use biscuits to hold it level as you bolt it up. You will get a far better join. Also worth using some old worktop to practice on.



[Deleted member 174758]

The guy I bought this off reckoned I wouldn't need a guide bush, but I think I do!--

What's the term? Ah, yes, Muppet!



[BloodAndBandages]

What's the term? Ah, yes, Muppet!

This was the guy!
