Pyronix enforcer

[Oscarsmokeytilley]

Hi,

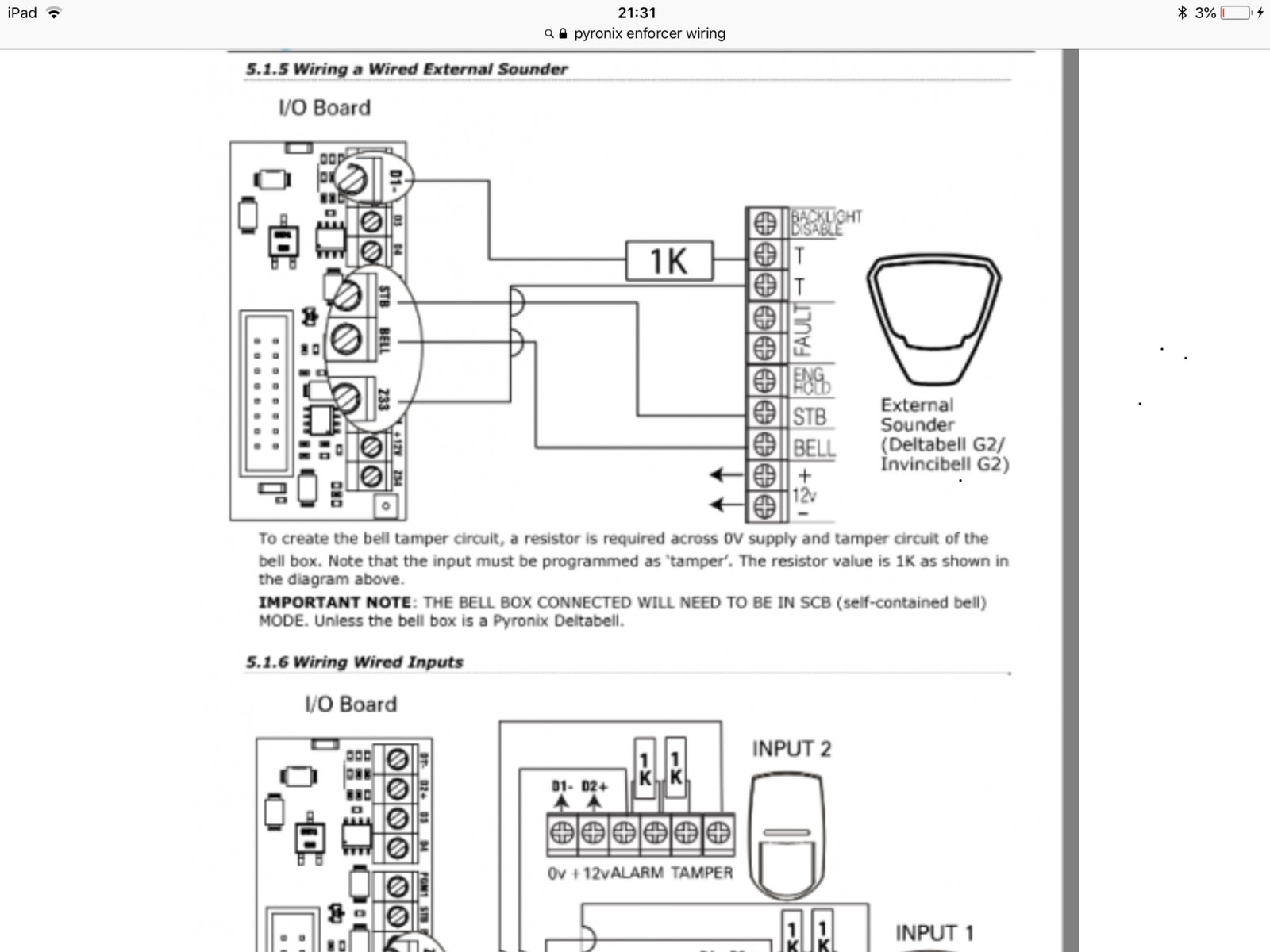

I have recently purchased a Pyronix wireless enforcer kit 3 and want to upgrade to the delta bell X with led light box. Looking at the wiring diagram in the instructions and from the limited detailed information online I cannot see where the 12v+ and 12v- are connected on the I/0 board.
I can clearly see a terminal for the 12v + but not 12v- although there is a COM terminal next to the 12v + terminal.



[sparkymarka]

Common is the 0v



[sparkymarka]



[Oscarsmokeytilley]

Hi,

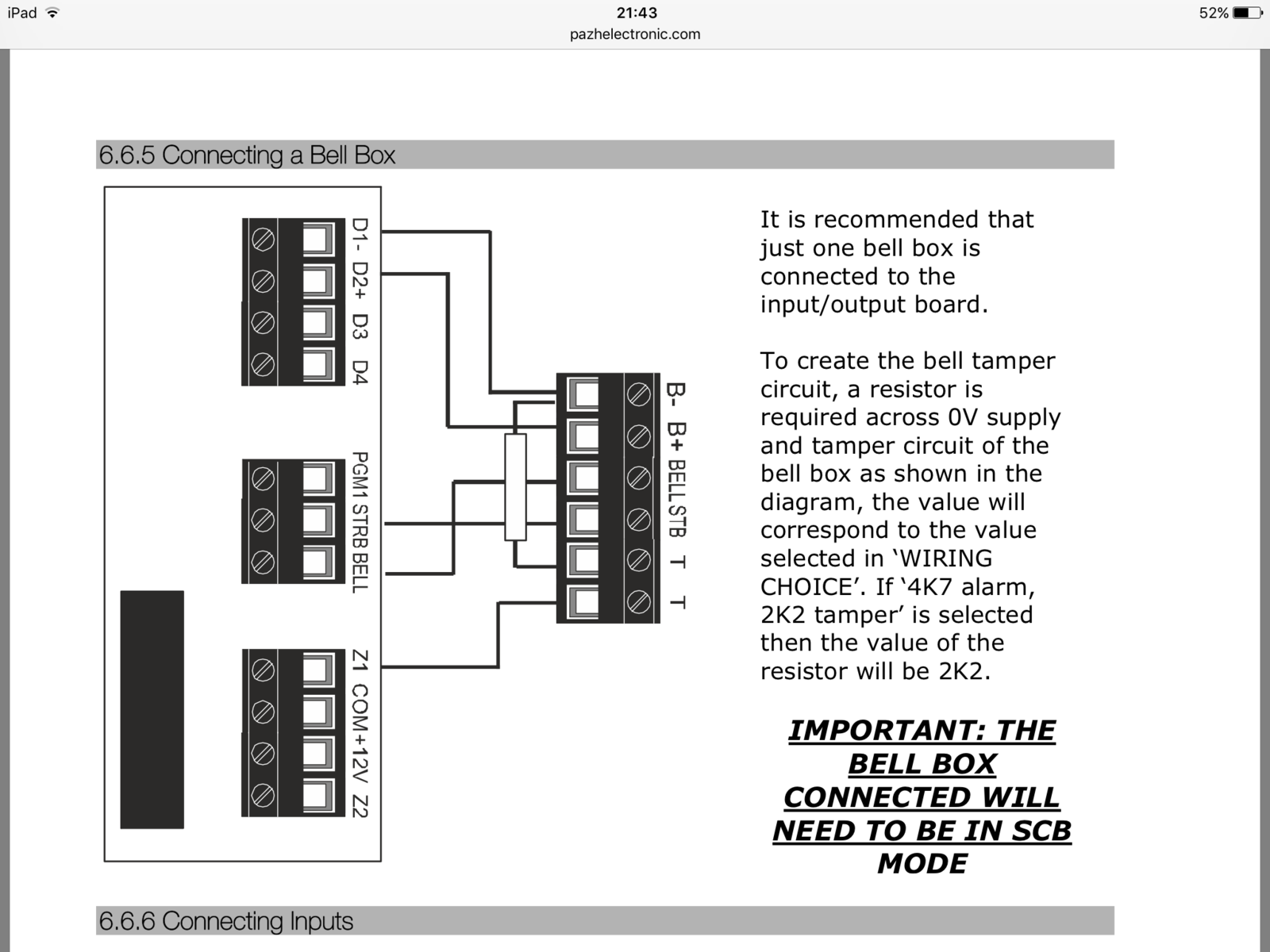

Thanks for your reply but it is still not clear to me where the 12v+ and 12v- from the delta box terminate in the control panel.



[sparkymarka]

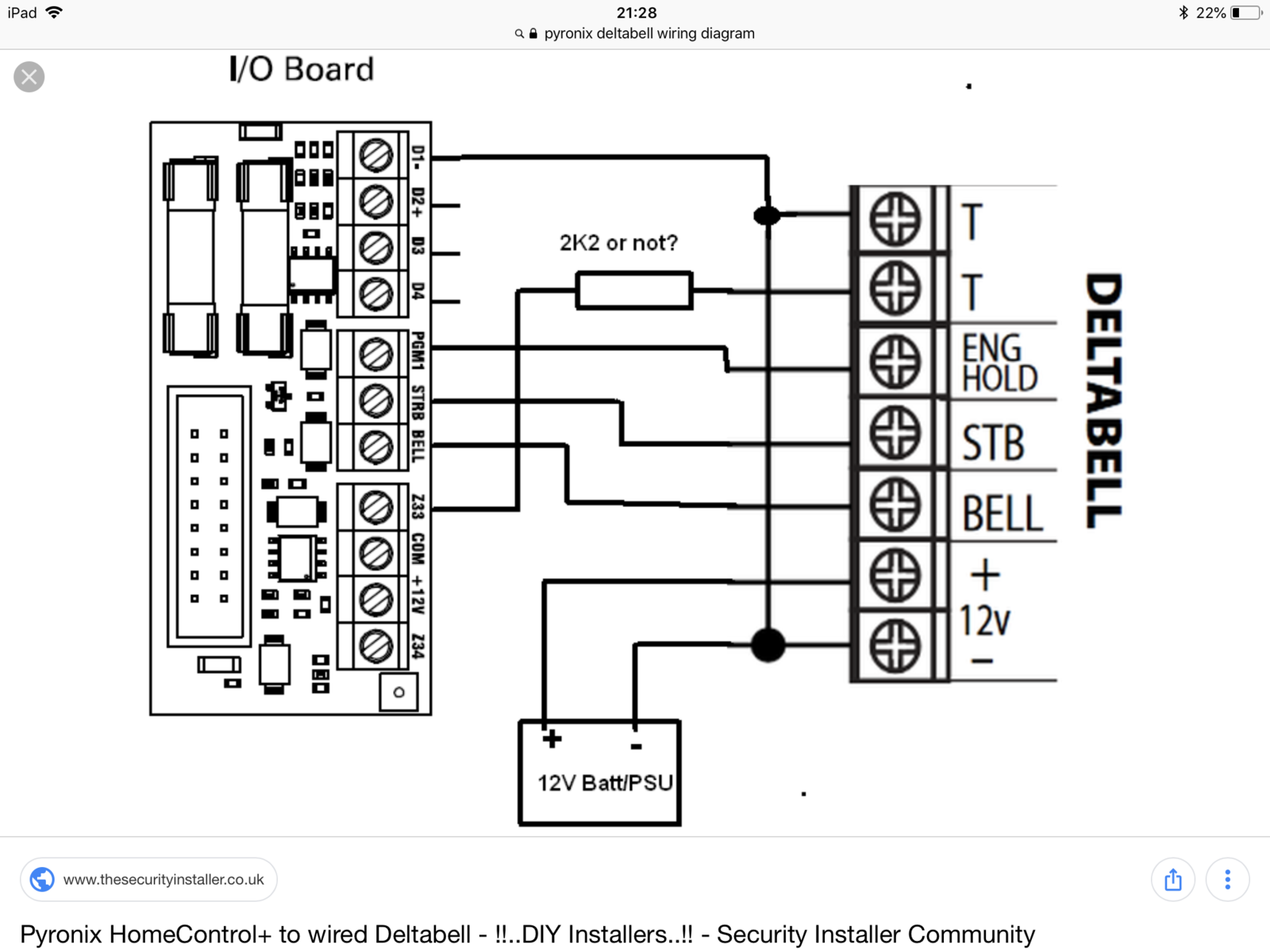

Well it's pretty obvious from the diagram above ...



[Oscarsmokeytilley]

I am presuming the B+ B- represents 12v+ and 12v- ?



[steveo44]

I am presuming the B+ B- represents 12v+ and 12v- ?

Correct
