Wiring BDR91 to worcester greenstar 4000 combi boiler

l3cvp5t71 · 24 Jan 2025

Hi

I've rencently bought Honeywell evo home kit and it came with a BDR91 relay. I would like to get a conformation that the wiring im going to do is correct

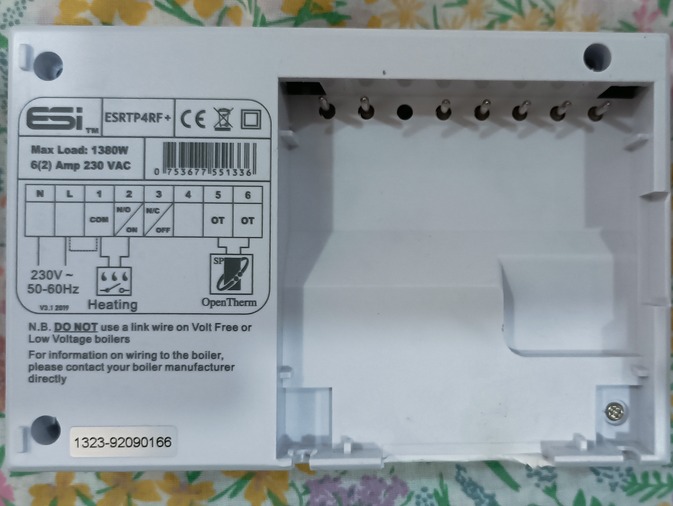

Existing: ESI ESRTP4RF+ (connected as shown below)

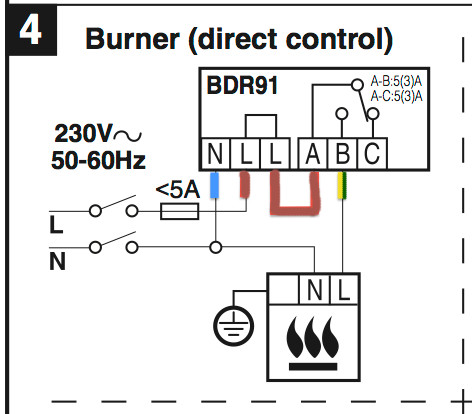

New : BDR91 [connection diagram from my understanding]

Stuckinarut · 24 Jan 2025

Yes, appears correct. That green/yellow wire needs brown sleeving or insulation tape though

l3cvp5t71 · 27 Jan 2025

Thanks
bought the sleeve and got it done
